More on DPI-awareness

I already blogged about Visual Studio extensions and DPI-awareness, where I detailed my experience converting my MZ-Tools extension to DPI-awareness for the most part (I haven’t updated the toolbar buttons yet because the required API only works on VS 2015 and higher).

I also mentioned how to run Visual Studio or setups with DPI virtualization (DPI-unaware) on high DPI displays, to overcome some display problems that can happen designing Windows Forms or running some old SDK setups.

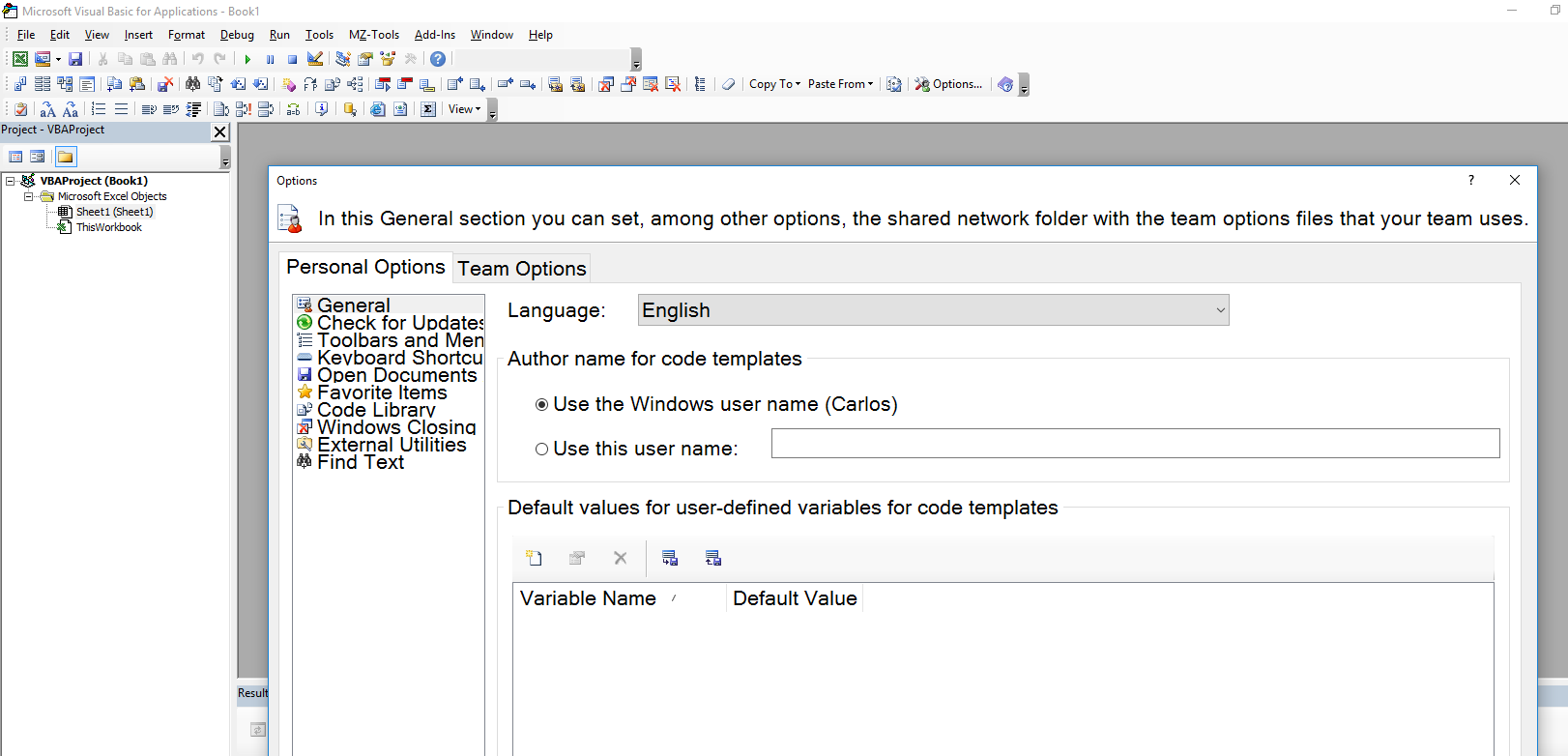

My problems didn’t end there, though. One of my customers reported me a bug that happened when using a laptop with a retina display connected to a non-retina external display. I was familiar with the problem because I have suffered it too, since I own a Surface Pro 4 with a dock station that uses a non-retina display. With some combination of undocking / restart / docking, I could end with this problem using MZ-Tools 8.0 for VBA in the VBA editor of Office (click to enlarge):

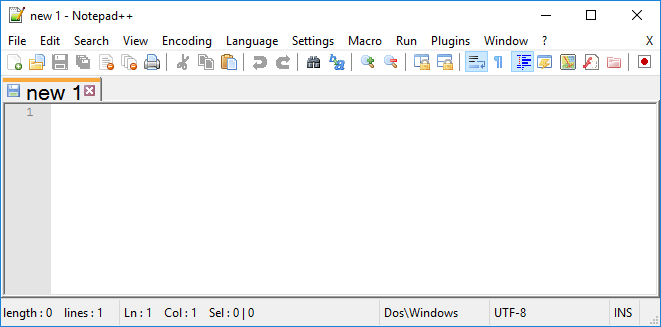

I thought that I was the only person with that problem but after the bug report I knew it affected other users. Also, I noticed that when the problem happened, Notepad++ was also affected in the document tabs, and it was already reported here, here and here:

My add-in uses Windows Forms, but Notepad++ uses GDI, so it is not a problem of Windows Forms but of GDI.

Aa a workaround, I had to change all the forms and usercontrols of my add-in to detect if the font was “too big” and in such case adjust its size. Technically, the System.Drawing.SystemFonts.DefaultFont is returned huge. It happens that internally it calls GetStockObject(DEFAULT_GUI_FONT), which according to MSDN is not recommended. So, if the add-in detects that the font of the form/usercontrol is much bigger (say, two points) than the size of System.Drawing.SystemFonts.MessageBoxFont (which is not affected by the problem), then it changes the size. The problem is convoluted by the fact that I cannot reproduce it at will.

It seems that the DPI-awareness problem is so pervasive that Microsoft has invested a lot of work to fix or alleviate it on the Windows 10 Anniversary Update introducing the concept of “Mixed-Mode” DPI scaling, also known as sub-process DPI scaling, via the concept of the DPI-awareness context (MSDN documentation here) and I am glad to see that the investment will continue heavily on the new Windows  10 Creators Update, due later this year, that will introduce new enhancements, including a new DPI-awareness context (“Per-Monitor V2”), automatic DPI scaling for GDI-based apps, new Windows Forms DPI scaling improvements (for people like me still using Windows Forms) and other improvements for Internet Explorer and Windows desktop icons (that I suffer too). You can watch the following video by James Clarke and Peter Felts explaining the improvements and showing cool demos (new post and sample to follow soon):

Using VSIXInstaller.exe to install programmatically an extension to Visual Studio 2015 and Visual Studio 2017

Answering a question in the MSDN VSX forum today, I have learned another change caused by the new VSIX installer (VSIXInstaller.exe) of Visual Studio 2017 that it is worth documenting here.

As you know, in Visual Studio 2015 only one edition (Community, Professional or Enterprise) could be installed on the same machine. Two or more editions couldn’t coexist at the same time. Given that the Enterprise edition includes the features of the Professional edition and that the Community edition is basically the Professional Edition (without some feature such as CodeLens), the VSIX manifest of your extension could target the “Pro” edition and as such it would be installable on any edition (Community, Professional or Enterprise):

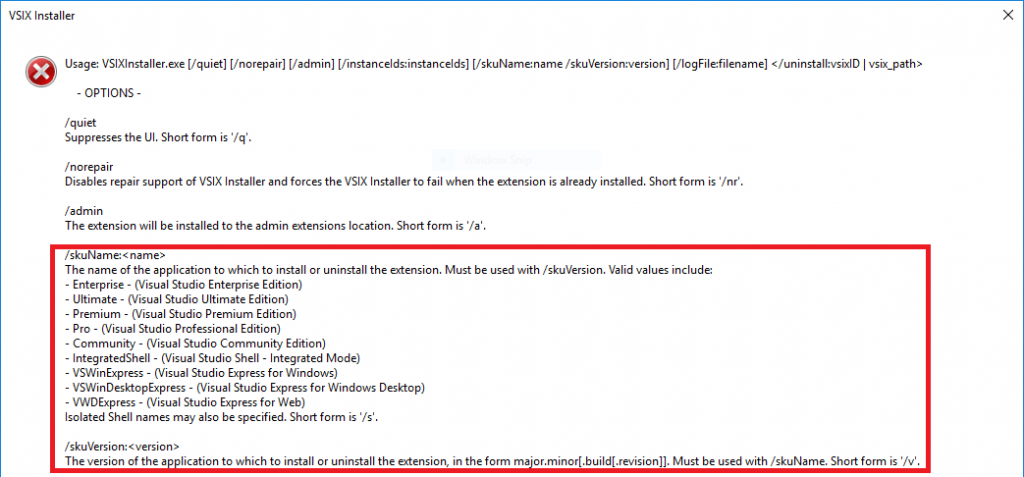

Normally a .VSIX file is installed just double-clicking it, so that the VSIXInstaller.exe application is launched. But if you want to install an extension programatically, the VSIXInstaller.exe application offers a few command-line switches:

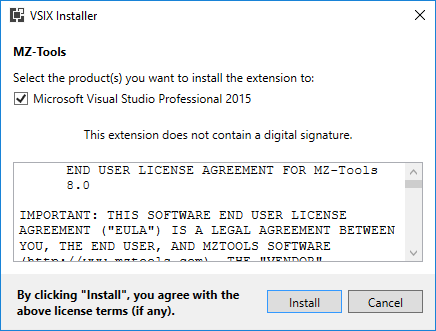

Notice the /skuName:<name> option: it allows to specify the exact edition (Enterprise, Premium, Pro, Community, etc.) of Visual Studio where you want to install the extension. Which value you would need to use? It happens that for Visual Studio 2015, you can use “Pro” and the extension will be installed happily not only on Visual Studio 2015 Professional, but also on Visual Studio 2015 Community or  (Updated March 1, see comments section) Visual Studio 2015 Enterprise. For example, installing my MZ-Tools extension on Visual Studio 2015 Enterprise edition with this command line works perfectly:

vsixinstaller.exe /skuName:Pro /skuVersion:14.0 “<path>\MZTools8VSPackage.vsix”

(notice that it recognizes my Enterprise edition as Professional edition).

However, the same is not true for VS 2017. Using this command line to install it on my Visual Studio 2017 Enterprise edition:

vsixinstaller.exe /skuName:Pro /skuVersion:15.0 “<path>\MZTools8VSPackage.vsix”

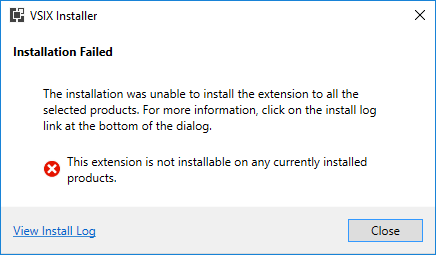

causes this error:

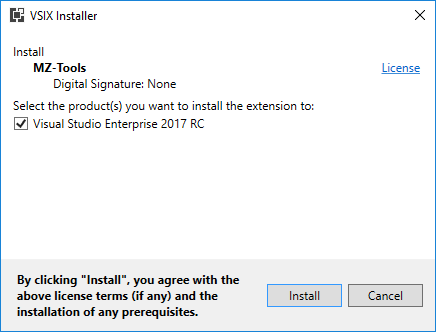

The following command-line is required, targeting specifically the Enterprise edition:

vsixinstaller.exe /skuName:Enterprise /skuVersion:15.0 “<path>\MZTools8VSPackage.vsix”

So, this is another implication of the new modular setup of Visual Studio 2017 for VSX developers. You can query the installed VS 2017 editions with a new Setup API (sample included).

Videos and extensions by Justin Clareburt, Program Manager in Visual Studio Extensibility

Justin Clareburt, Program Manager in Visual Studio Extensibility, and super passionate about VSX and super active in the Microsoft/extendvs Gitter room to help you to update successfully your extension to Visual Studio 2017, has also time to produce videos and to create extensions!:

The first video is with Seth Juarez, about using keyboard mappings in Visual Studio:

And his “hot” extensions:

– Hot Keys: Visual Studio Extension that imports several new keyboard mapping schemes http://aka.ms/hotkeys

– Hot Commands: Provides additional commands and shortcuts for enhanced productivity http://aka.ms/hotcommands

The second video is with Robert Green (Visual Studio Toolbox) about updating your extension to the new Visual Studio 2017:

Microsoft.VSSDK.BuildTools 15.0 no longer in Preview/Release Candidate

Just in case you haven’t noticed it, the NuGet package for Microsoft.VSSDK.BuildTools 15.0 is no longer Preview or Release Candidate (RC, RC2 or RC3) but final release:

As you can see, it has been a long way of previews / RCs to reach this point:

So, it’s time to update that NuGet package and rebuild. Microsoft hasn’t announced yet the release date of the final version of Visual Studio 2017 but it seems that we are approaching that date, at least from the Visual Studio Extensibility point of view. Update (Feb 10): the launch date has been announced for March 7. If you haven’t updated your extension to support VS 2017 yet, the clock is ticking. Here you have the guidance to do it.
